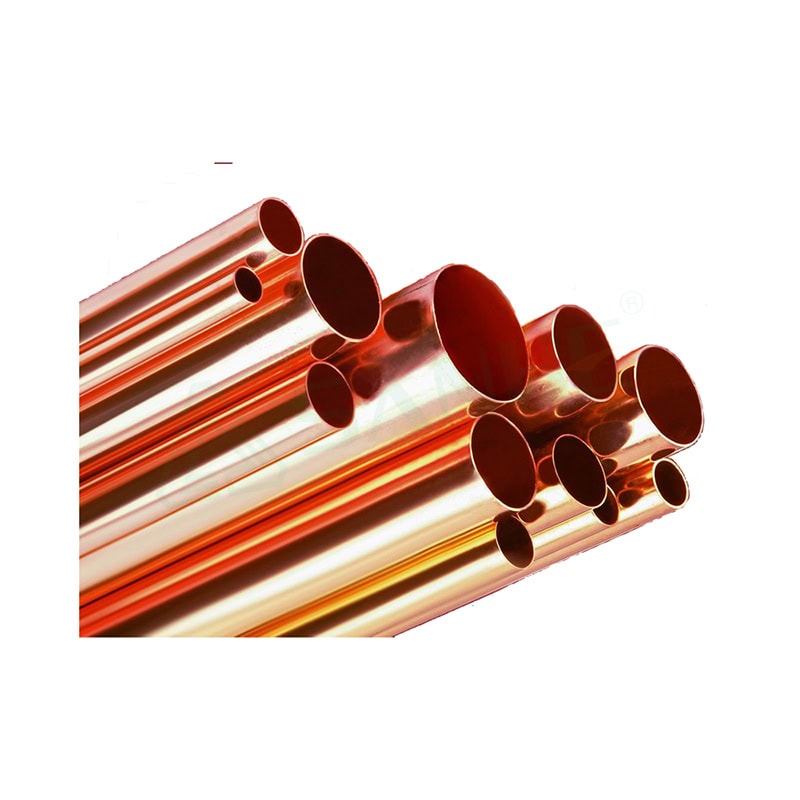

Air Conditioning Straight Tube
Air Conditioning Straight Tube – Product Short Description
High-quality straight copper tube for air conditioning and refrigeration applications. Precision-drawn, clean interior, compatible with R32, R410a, R22, and other common refrigerants. Suitable for line sets, connecting pipes, and custom installations.
Key Features
High purity copper: excellent thermal conductivity.
Clean interior: reduces system contamination.
Uniform wall thickness: reliable pressure handling.
Corrosion resistant: long service life.
Easy to cut and flare: simple installation.
Common Uses
AC line sets, split system connections, condenser coils, evaporator tubes, and commercial refrigeration piping.
Description
| 0.D\ | 0.30 | 0.35 | 0.40 | 0.45 | 0.50 | 0.55 | 0.60 | 0.65 | 0.70 | 0.75 | 0.80 | 1.00 | 1.20 | 1.50 |
| Thickness | mm | mm | mm | mm | mm | mm | mm | mm | mm | mm | mm | mm | mm | mm |
| 3/16“ (4.76 ) | O | O | O | O | O | O | O | O | O | O | O | |||
| 1/4“ (6.35 ) | O | O | O | O | O | O | O | O | O | O | O | O | O | |
| 5/16“ (7.94 ) | O | O | O | O | O | O | O | O | O | O | O | O | O | O |
| 3/8“ (9.52 ) | O | O | O | O | O | O | O | O | O | O | O | O | O | O |
| 1/2“ (12.70 ) | O | O | O | O | O | O | O | O | O | O | O | O | O | |
| 5/8“(15.88) | O | O | O | O | O | O | O | O | O | O | O | O | ||
| 3/4“ (19.05 ) | O | O | O | O | O | O | O | O | O | |||||
| 7/8“ (22.23 ) | O | O | O | O | O | O | O | O | O | |||||
| 1“ (25.4 ) | O | O | O | O | O | |||||||||
| 1-1/8“ (28.57 ) | O | O | O | O |
