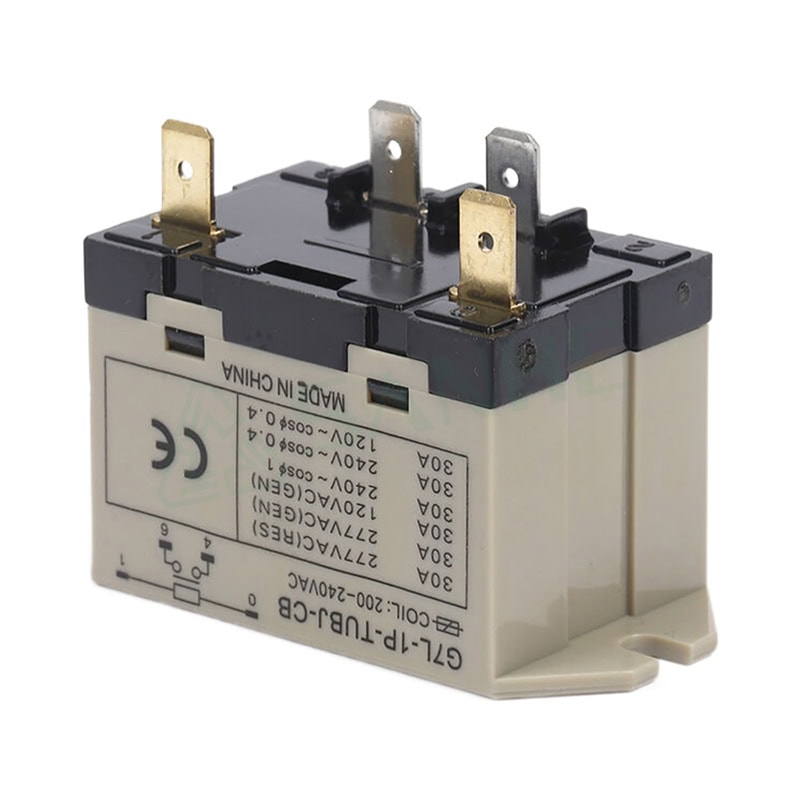

G7L Mini Electromagnetic Relay
G7L Mini Electromagnetic Relay – Product Short Description
High-quality mini electromagnetic relay for refrigeration, air conditioning, and HVAC control systems. Reliable switching performance, compact size, low power consumption. Compatible with compressor, fan, and pump control circuits.
Key Features
Compact design: saves panel space.
Low coil power: energy efficient.
High contact rating: handles inductive loads.
Durable construction: long service life.
Easy to install: standard PCB or socket mount.
Common Uses
Compressor start relays, fan speed control, defrost timers, and HVAC control panels.
Description
| Model | G7L-1P-TUBJ-CB | G7L-2P-TUBJ-CB | ||
| SATR | Load Resistive load | Inductive load(Cosf=0.4) | Load Resistive load | Inductive load(Cosf=0.4) |
| Item | Double Break | |||
| Contact Material | Ag ALloy | |||
| Rated Load | 30A at 220VAC | 25A at 220VAC | 30A at 220VAC | 25A at 220VAC |
| Rated Carry Current | 30A | 25A | ||
| Coil voltage | 24/200~240VAC5 | |||
